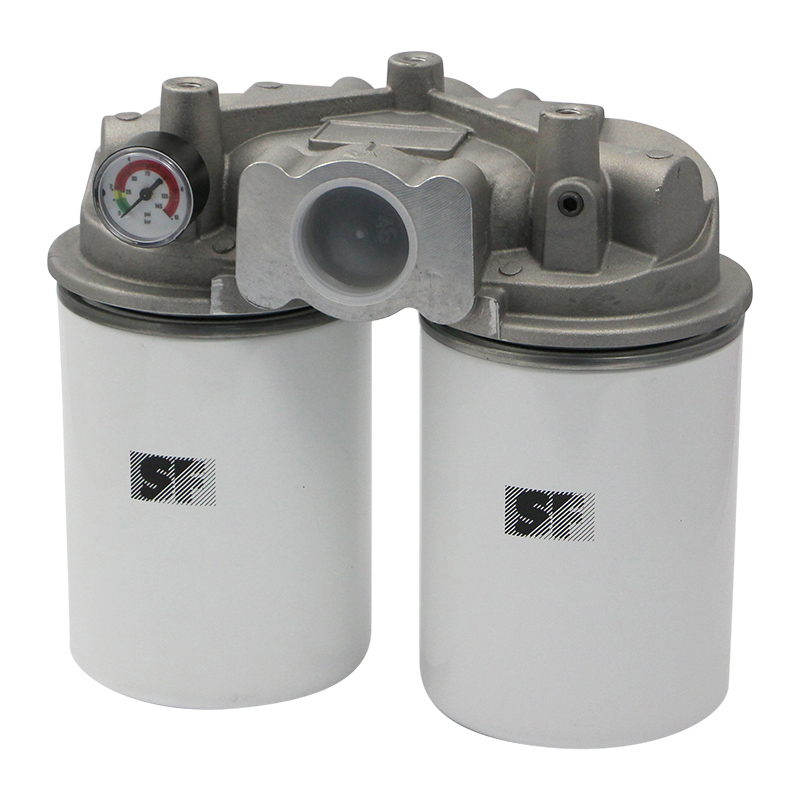

Filtr ssawny - powrotny MPS 300 / maks. przepływ 330 l/min. - gwint G 1½”
- The MPS spin-on filter series are for suction and return applications in hydraulicand lubrication circuits
- Element material: resin impregnated paper media (P), inorganic microfiber (A)or wire mesh (M)
- Filter head: Aluminium, Port size G 1½"
- - MPS 300-0 - Head without bypass valve, visual indicator available for suction an return flow
- - MPS 300-R - Head with bypass valve, differential opening pressure 1,75 bar ± 10%,visual indicator for return flow available
- - MPS 300-S - Head with bypass valve, differential opening pressure 0,3 bar ± 10%,visual indicator for suction flow available
- Working temperature -25°C - +110°C
- Working pressure max. 12 bar - differential pressure max. 4 bar
MPS 300
MPS 300
Material - fineness
Return/Line flow (l/min)
Suction flow (l/min)
Length H (mm)
Length H1 (mm)
Filtering area (cm²)
2 x SPH 18690
A 03
130
30
265
290
7900
2 x SPH 18059
A 06
170
45
265
290
7900
2 x SPH 18060
A 10
220
65
265
290
7900
2 x SPH 18061
A 25
290
110
265
290
7900
2 x SPH 18063
M 60
---
120
265
290
3980
2 x SPH 18064
M 90
---
120
265
290
3980
2 x SPH 18058
P 10
270
100
265
290
8600
2 x SPH 18062
P 25
290
120
265
290
8600
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction
Material - fineness
Return/Line flow (l/min)
Suction flow (l/min)
Length H (mm)
Length H1 (mm)
Filtering area (cm²)
2 x SPH 18905
A 03
180
50
310
335
10780
2 x SPH 18912
A 06
210
60
310
335
10780
2 x SPH 18065
A 10
250
80
310
335
10780
2 x SPH 18066
A 25
310
125
310
335
10780
2 x SPH 18069
M 60
---
130
310
335
4800
2 x SPH 18070
M 90
---
130
310
335
4800
2 x SPH 18067
P 10
280
118
310
335
11520
2 x SPH 18068
P 25
330
158
310
335
11520
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction
Please select your MPS-300 Spin-On in-line filter by clicking in the first blue frame. Information about availability and price will be provided for you when you are logged on. Or send us an enquiry.
